Specifications:
Colour(s) | White |
Black | |
CCT | 3000K / 4000K / 5700K / 6500K |
Fixture material | PC |
Environment | Indoor |
IP rate | IP20 |
Operating temperture(Ta) | -20°C ~ +50°C |
CRI | 80 |
Warranty | 3 years |
Safety Class | II |
Input | AC100-240V 50/60Hz |
AC160-240V 50/60Hz | |
Option | Dimmable |

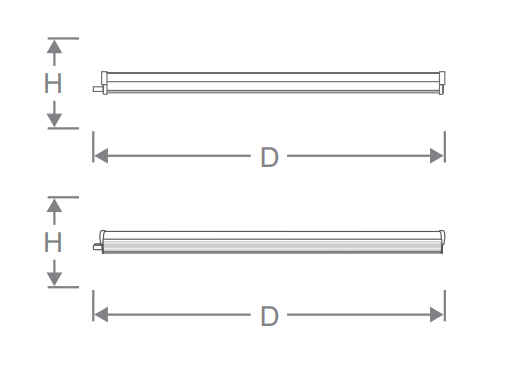

Dimesions：
| D×H | Cut-out | |
QK-FL-T5S-5 | 330×35mm | / |
QK-FL-T5S-9 | 590×35mm | / |
QK-FL-T5S-14 | 890×35mm | / |
QK-FL-T5S-18 | 1190×35mm | / |
QK-FL-T5S-23 | 1495×35mm | / |
QK-FL-T5R-5 | 330×35mm | / |
QK-FL-T5R-9 | 590×35mm | / |
QK-FL-T5R-14 | 890×35mm | / |
QK-FL-T5R-18 | 1190×35mm | / |
Item specifications:
| Description | LED power | LEDS | LEDS QTY | CRI(typ.) | Driver | PF | Lm/W |
| QK-FL-T5S-5 | 5W | SMD 2835 | 27 | ＞80 | AC100-240V AC160-240V | 0.5/0.9 | 80/110 |
| QK-FL-T5S-9 | 9W | SMD 2835 | 54 | ＞80 | AC100-240V AC160-240V | 0.5/0.9 | 80/110 |
| QK-FL-T5S-14 | 14W | SMD 2835 | 81 | ＞80 | AC100-240V AC160-240V | 0.5/0.9 | 80/110 |
| QK-FL-T5S-18 | 18W | SMD 2835 | 108 | ＞80 | AC100-240V AC160-240V | 0.5/0.9 | 80/110 |
| QK-FL-T5S-23 | 23W | SMD 2835 | 138 | ＞80 | AC100-240V AC160-240V | 0.5/0.9 | 80/110 |
| QK-FL-T5R-5 | 5W | SMD 2835 | 27 | ＞80 | AC100-240V AC160-240V | 0.5/0.9 | 80/110 |
| QK-FL-T5R-9 | 9W | SMD 2835 | 54 | ＞80 | AC100-240V AC160-240V | 0.5/0.9 | 80/110 |
| QK-FL-T5S-14 | 14W | SMD 2835 | 81 | ＞80 | AC100-240V AC160-240V | 0.5/0.9 | 80/110 |
| QK-FL-T5S-18 | 18W | SMD 2835 | 108 | ＞80 | AC100-240V AC160-240V | 0.5/0.9 | 80/110 |

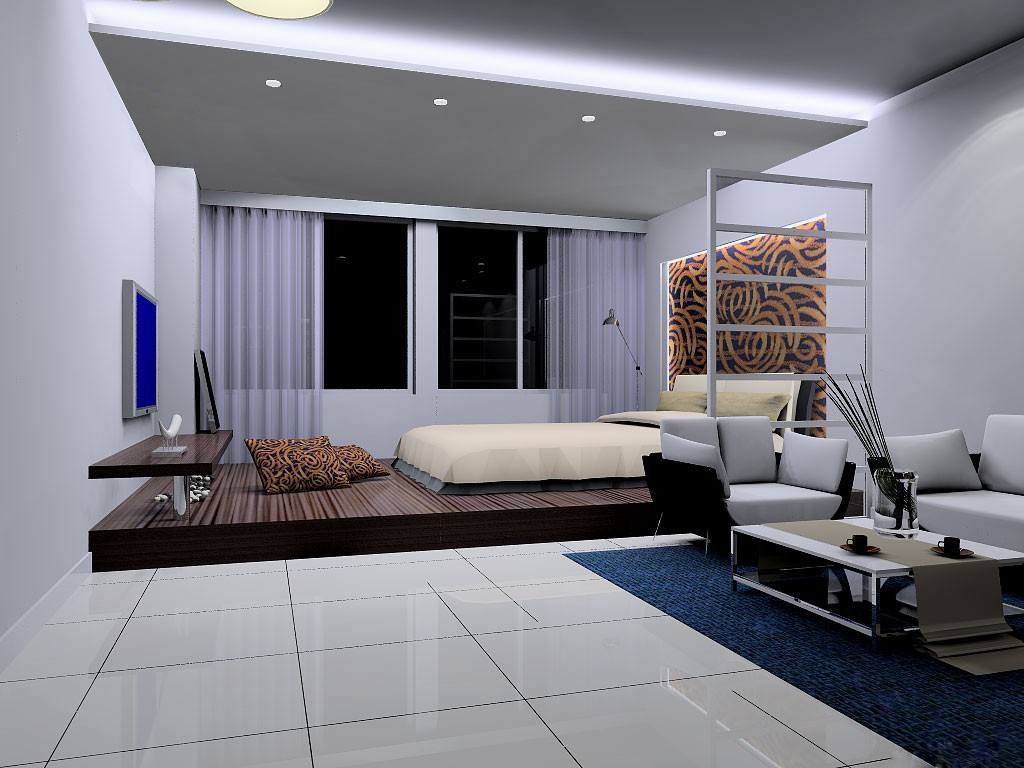

Product scene：
