Specifications:
Colour(s) | White |
Black | |
CCT | 3000K / 4000K / 5700K / 6500K |
Fixture material | PCDie east aluminum |
Environment | Indoor |
IP rate | IP20 |
Operating temperture(Ta) | -20°C ~ +50°C |
CRI | 80 |
Warranty | 3 years |
Safety Class | II |
Input | AC100-240V 50/60Hz |
AC160-240V 50/60Hz |

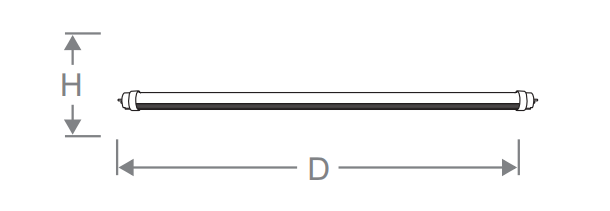

Dimesions：
| D×H | Cut-out | |
QK-FL-T8-11 | 590×27mm | / |
QK-FL-T8-24 | 1210×27mm | / |
Item specifications:
| Description | LED power | LEDS | LEDS QTY | CRI(typ.) | Driver | PF | Lm/W |
| QK-FL-T8-11 | 11W | SMD 2835 | 60 | ＞80 | AC100-240V AC160-240V | 0.5/0.9 | 80 |
| QK-FL-T8-24 | 24W | SMD 2835 | 120 | ＞80 | AC100-240V AC160-240V | 0.5/0.9 | 80 |
Product scene：
